3RU1146-4DB0 (18-25 amps)

Siemens

$ 125.00

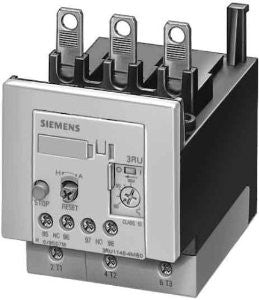

Siemens Overload 3RU1146-4DB0

Overload Range 18-25 amps



(Fits 3RT104 Contactors)

Click Here to View information about this Product

Features and technical characteristics

  • 1 NO & 1 NC auxiliary contacts
  • Manual/automatic RESET
  • Trip indicator
  • STOP button
  • Test function
  • Sealable cover

Application:
3RU11 overload relays provide overload protection for three-phase inductive motors with
rated currents of up to 100A (75HP, AC-3,480V).

They are used in conjunction with
3RT10 contactors to form motor starters.

Trip class:
The 3RU11 overload relays are designed in
accordance with trip class 10, i.e. trips in less
than 10 seconds at 6 times the trip current setting (FLA).

The 3RU11 thermal overload relay is set by adjusting to the rated motor current with a setting dial.

The range on the setting dial is calibrated in amperes.
