1453586 Power Distribution Block

Marathon

$ 75.00

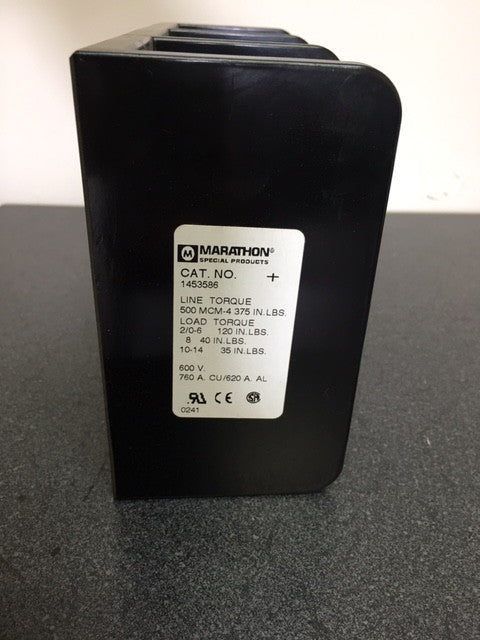

Marathon Special Products 1453586 Power Distribution Block

3-Pole 760 Amps 600 Volts AC/DC


Wire Range

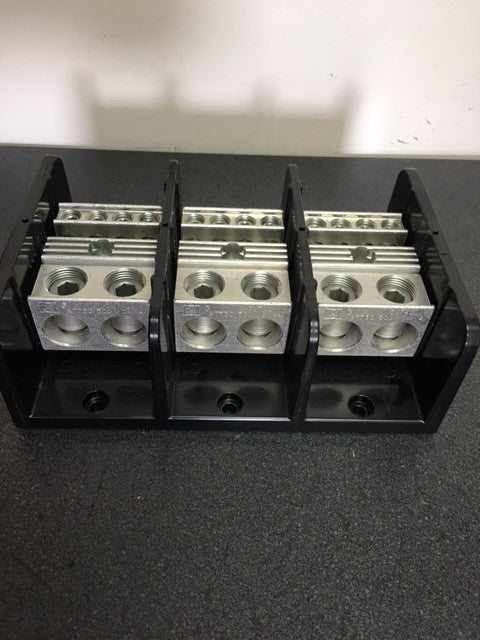

• Line: (2) 500 kcmil - #6 AWG

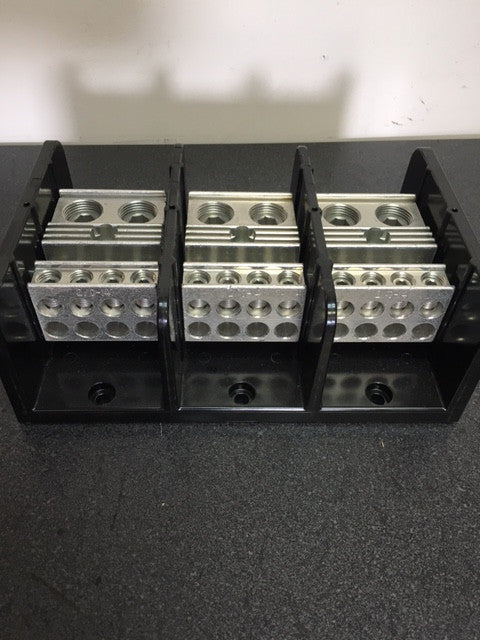

• Load: (8) 2/0 - #14 AWG


Electrical Ratings
• 760 Amps
• 600V per UL 1059 & CSA 22.2 No.158, class B & C requirements
• Short circuit current ratings (SCCR): See SCCR section below for specifications.
• CU7AL - 75°C connector terminal rating with copper or aluminum wire
• Factory & Field Wiring


Material Information
• Insulator base:
• Phenolic
• Flammability rating of insulator base UL94V0
• Insulator base temperature rating: -40°C to 150°C (UL RTI)
• Connector: aluminum, tin plated
• Terminal set screws: aluminum, tin plated
• Connector mounting screws: steel, zinc plated
• RoHS compliant
