Icotek 42204 KEL-B4

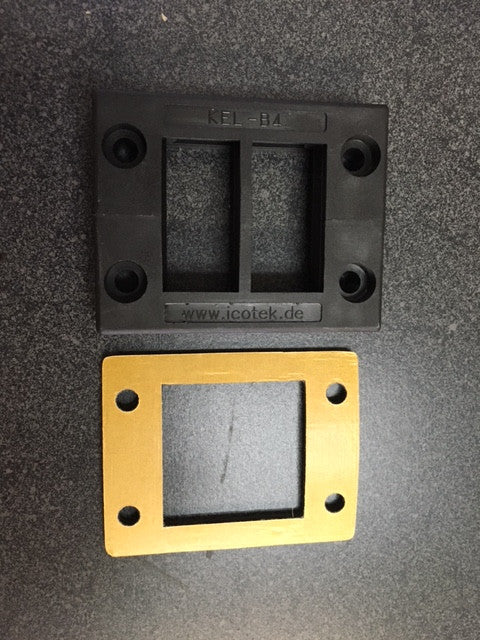

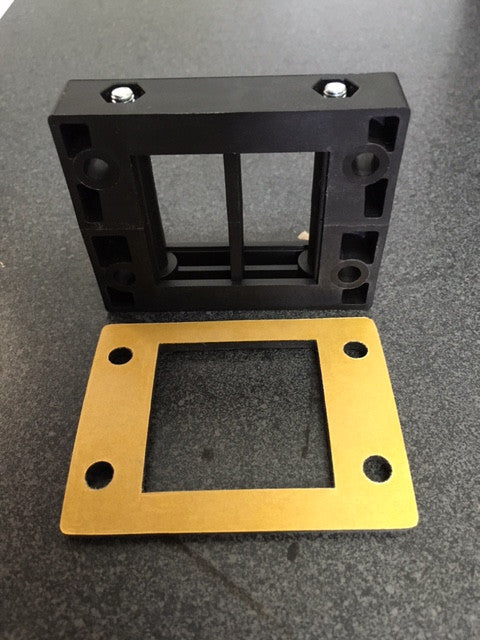

Icotek 42204 KEL-B4 cable entry frame
The split cable entry frame KEL-B matches exactly the cut-out dimensions of 46 × 46 mm measuring instruments.
The 42204 KEL-B4 can accommodate up to four KT style cable grommets.
The split grommet (KT style) matching the cable diameter is placed around the cable and inserted into the cable entry frame. For routing cables and conduits up to 34 mm in diameter.
Advantages:
1. Warranty on pre-terminated cables remains
2. Retrofitting and maintenance can be carried out easily and quickly
3. Space saving shape
4. Small cut-out, high packing density
5. Strain relief according to EN 50262 / 62444
6. Vibration proof
Icotek 42204 KEL-B4 information
