3RT2018-1AK61 (110v50Hz/120v60Hz Coil)
Sorry, this product is temporarily out of stock.

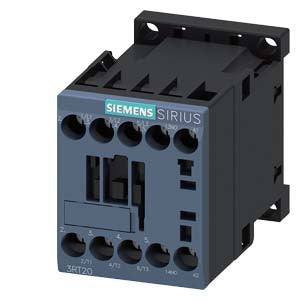

Siemens Sirius 3RT2018-1AK61 contactor
Siemens Contactor Frame Size 00 16 amp 3-Pole 110v50Hz/120v60Hz coil With 1-NO aux.
3RT201 contactors, 3-pole, size S00
AC and DC operation
The 3RT201 contactors are climate-proof. They are finger-safe
according to DIN VDE 0106 Part 100
Size S00 contactors have an auxiliary contact integrated in the
All basic units can be extended with auxiliary switch blocks.
For size S0 complete units come with 1 NO + 1 NC auxiliaries.
If voltages ≤ 110 V and current ≤ 100 mA are to be switched,
the auxiliary contacts of the 3RT20 contactor should be used as they guarantee a high level of contact
These auxiliary contacts are suitable for solid-state circuits with
currents ≥ 1 mA at a voltage of 17 V.
3RT1 contactors can be retrofitted with RC elements, varistors,
diodes or diode assemblies (assembly of diode and Zener diode
for short break times) for damping opening surges in the coil.
The surge suppressors are plugged onto the front of size S00
contactors. Space is provided for them next to a snap-on
auxiliary switch block.
For size S0 to S3 contactors, varistors and RC elements can be
snapped on either on the top or directly below the coil
terminals. Diode assemblies are available in 2 different versions
on account of their polarity. Depending on the application they
can be connected either only at the bottom (assembly with
motor starter protector) or only at the top (assembly with
The plug-in direction of the diodes and diode assemblies is
specified by coding.
